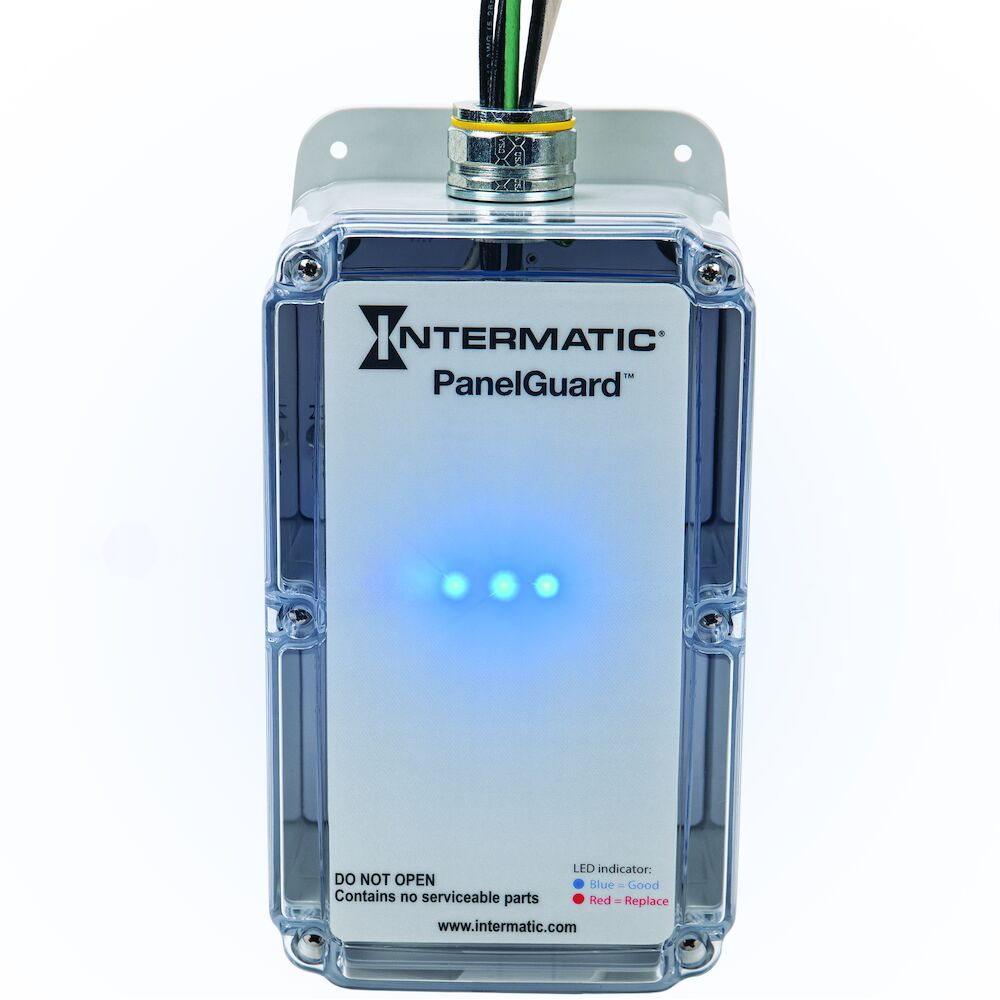

Intermatic H20S23D1DG1 Surge Protective Device, 7-Mode, 120/240 VAC 3Ph High Leg Delta, Type 2, EMI/RFI Filter, Surge Current Rating 200kA
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
- Type 2 surge protection
- Optional audible alarm and dry relay contacts
- 7 Modes of protection
- NFPA 780, UL 96A Lightning system protection compliant
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Optional advanced electrical noise filter (UL 1283)
- Blue LED status indicator per phase, red LED service indicator
|Color||Gray||Modes of Protection||7|
|Surge Protection Type||2||Enclosure Type||NEMA Type 4X|
|Surge Protection Technology||Individually integrated thermal disconnect technology TPMOV||Voltage||120/240 VAC 3-Phase High Leg Delta|
|Filter||EMI/RFI Filter||Warranty Period||10-Year limited|
|Has LED Remote Contact Audible Alarm||No||Maximum Surge Current Rating Per Phase||200 kA|
|AC Sinewave Tracking (EMI/RFI) Level||Sinewave tracking (EMI/RFI) level is up to 54? dB? from 2 kHz to 100 MHz||Conduit Size||3/4"|
|Diagnostics Indicator||Blue LED Status Indicator Per Phase, Red LED Service Indicator||Maximum Continuous Operating Voltage (L-G)||150|
|Maximum Continuous Operating Voltage (L-L)||300||Maximum Continuous Operating Voltage (L-N)||150|
|Maximum Continuous Operating Voltage (N-G)||150||Maximum Continuous Operating Voltage HG||300|
|Maximum Continuous Operating Voltage HL||300||Maximum Continuous Operating Voltage HN||300|
|Maximum Surge Current Rating Per Mode||100 kA||Nominal Discharge Current||20 kA|
|RoHS Certification||Yes||Short Circuit Current Rating||200 kA|
|Surge Protection LED Indicator||Yes||Voltage Protection Rating (L-G)||700|
|Voltage Protection Rating (L-L)||1200||Voltage Protection Rating (L-N)||800|
|Voltage Protection Rating (N-G)||700||Voltage Protection Rating HG||1200|
|Voltage Protection Rating HL||2000||Voltage Protection Rating HN||1200|
|Wire Size Max||#10 AWG||Operating Temperature Max (°C)||80|
|Operating Temperature Max (°F)||176||Operating Temperature Min (°C)||-40|
|Operating Temperature Min (°F)||-40||Product Depth (in)||3.29|
|Product Depth (mm)||83.57||Product Height (in)||10.59|
|Product Height (mm)||268.99||Product Width (in)||5.25|
|Product Width (mm)||133.35||Unit Carton Height (in)||4.375|
|Unit Carton Length (in)||12.625||Unit Carton Weight (lb)||0.6|
|Unit Carton Width (in)||6.375|
