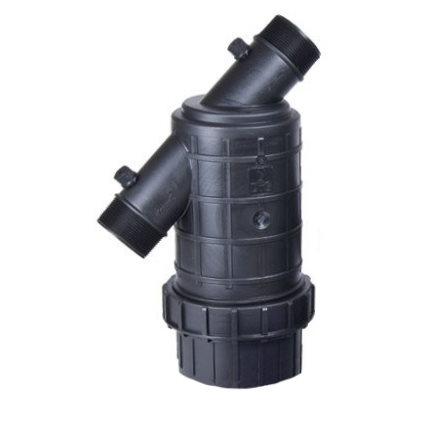

DIG’s 1 1/2″ and 2″ plastic screen filters with pipe thread are commonly used in commercial and agriculture installations to protect drip irrigation, micro sprinklers and other low-flow systems from debris that might enter the line and cause blockage of the emitters. The low-maintenance screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.
- Large filter area and low friction loss allows long intervals between cleaning
- All-purpose filter with a wide range of stainless-steel screens from 80 to 180 microns to suit a wide range of filtration requirements
- Designed to reduce operating costs and deliver high quality filtrate in a minimum space
- Screens have excellent resistance to most common chemicals
- Easy maintenance – the screen can be extracted from the filter for cleaning
- Interchangeable screen and disc elements within the filter
- Access point on the inlet and outlet side for pressure measurement test
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
- Flow rates:
- 1 1/2" up to 66 GPM (20 m3/h)
- 2" up to 80 GPM (15 m3/h) Screen filtration area: 11/2" 85.6 sq. inch (552 cm2)
- 2" 103.8 sq. inch (670 cm2)
- Operating pressure: up to 120 PSI (8.4 BAR)
- Temperature range: up to 130°F (54°C)
- Stainless-steel screens from 40 to 200 mesh
- Inlet and outlet size: 1 1/2" and 2" MNPT with 3/4" MPT cap
- Filter Materials
- Housing: polypropylene
- Screen: Stainless steel with polyester body
- O-ring: EPDM
- Pressure testing port: polypropylene
- Pressure testing seals: natural rubber BR
